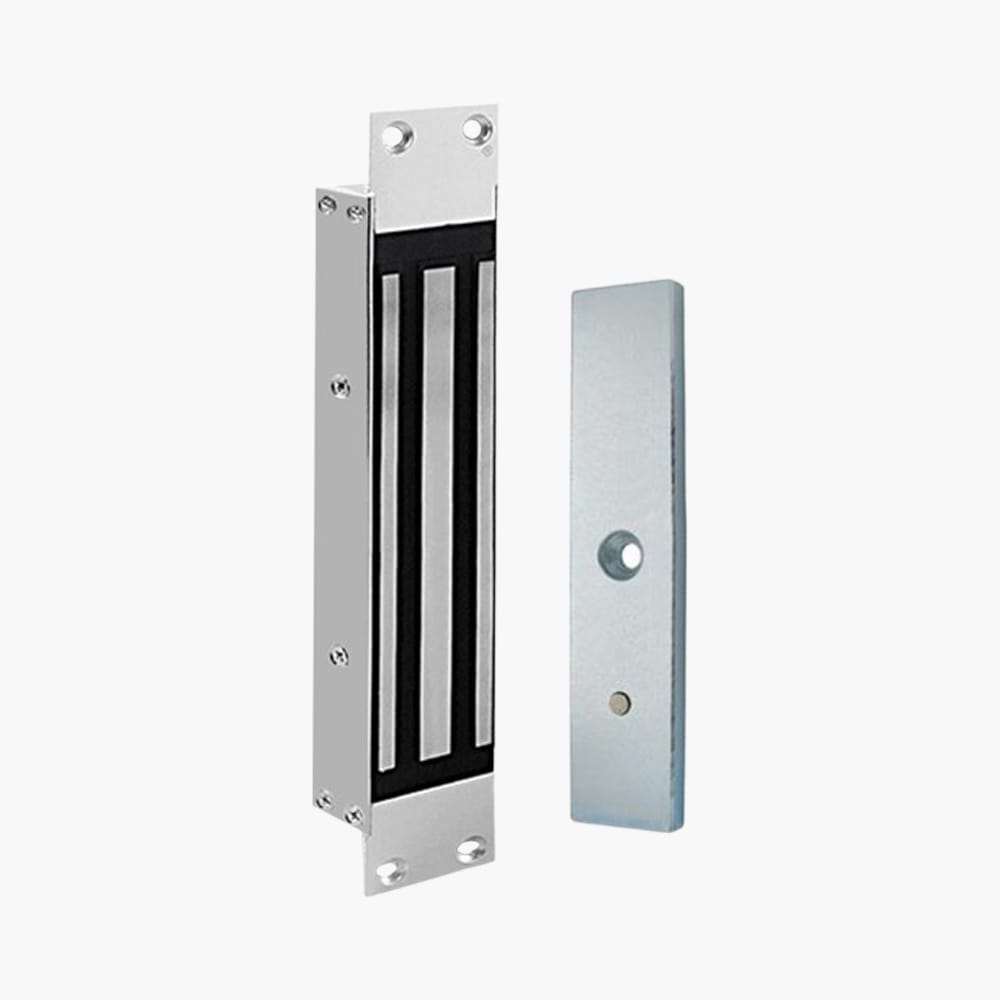

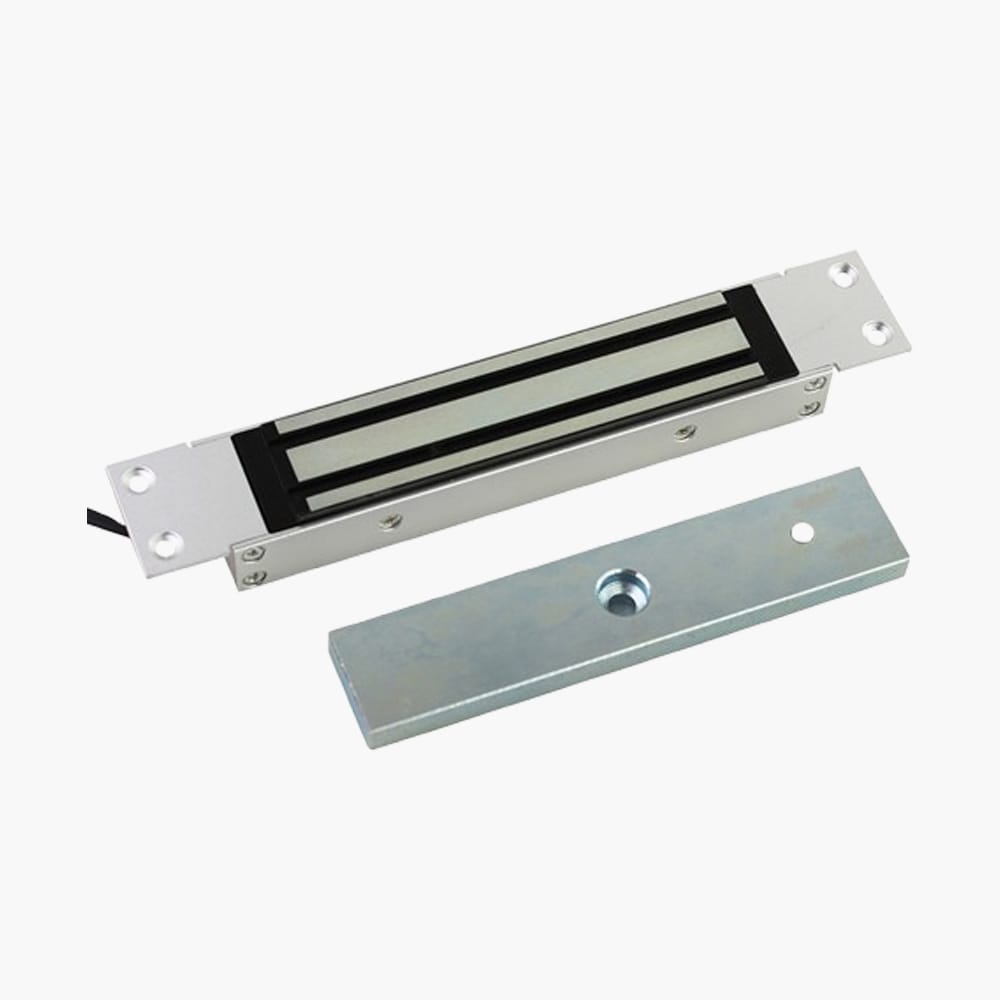

Electromagnetic Lock 600LBS (280KG) Embedded Mount
Electromagnetic Lock 600LBS (280KG) Embedded Mount
Electromagnetic locks use a magnetic field to secure doors and are commonly used in access control systems for electronic locking and unlocking.
Voltage: DC12V and DC24V
Holding Force: 280KG (600Lbs)
Lock Size: 258X 46 X 26 MM
Brand: Avecone
Item No.: EM-600H
Additional information
| Lock Size | 258 X 46 X 26 MM |
|---|---|
| Plate | 180 X 38 X 11 MM |
| Holding Force | 280KG (600LBS) |
| Voltage | DC12V or DC24V |
| Current Draw | 12V/500mA 24V/250mA |
| Signal Output | Dry Contact, Max Rating of Contact Current 3A |
| Surface Temperature | ≤20°C |
| Operating Temperature | -10°C ~ 55°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Finishes for Shell | Anodized Aluminium Surface Texture Processing |
| Weight | 2KG |
