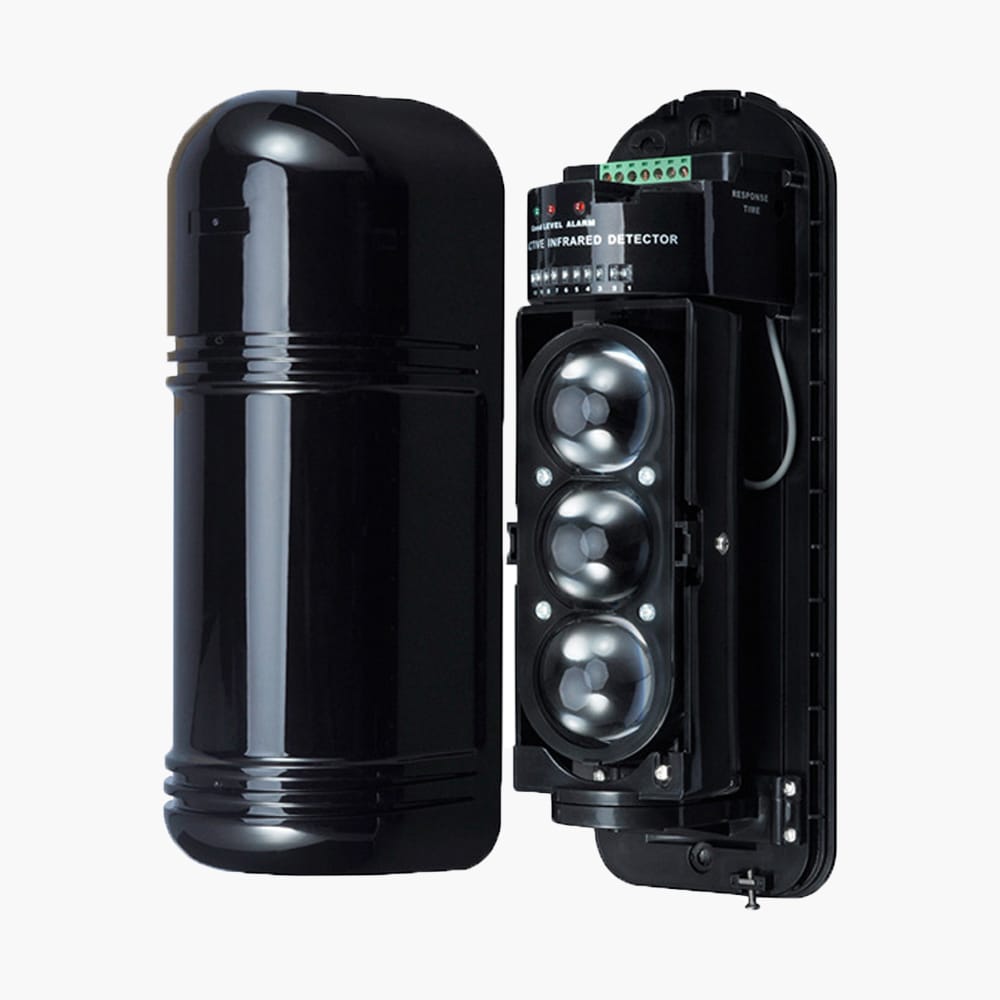

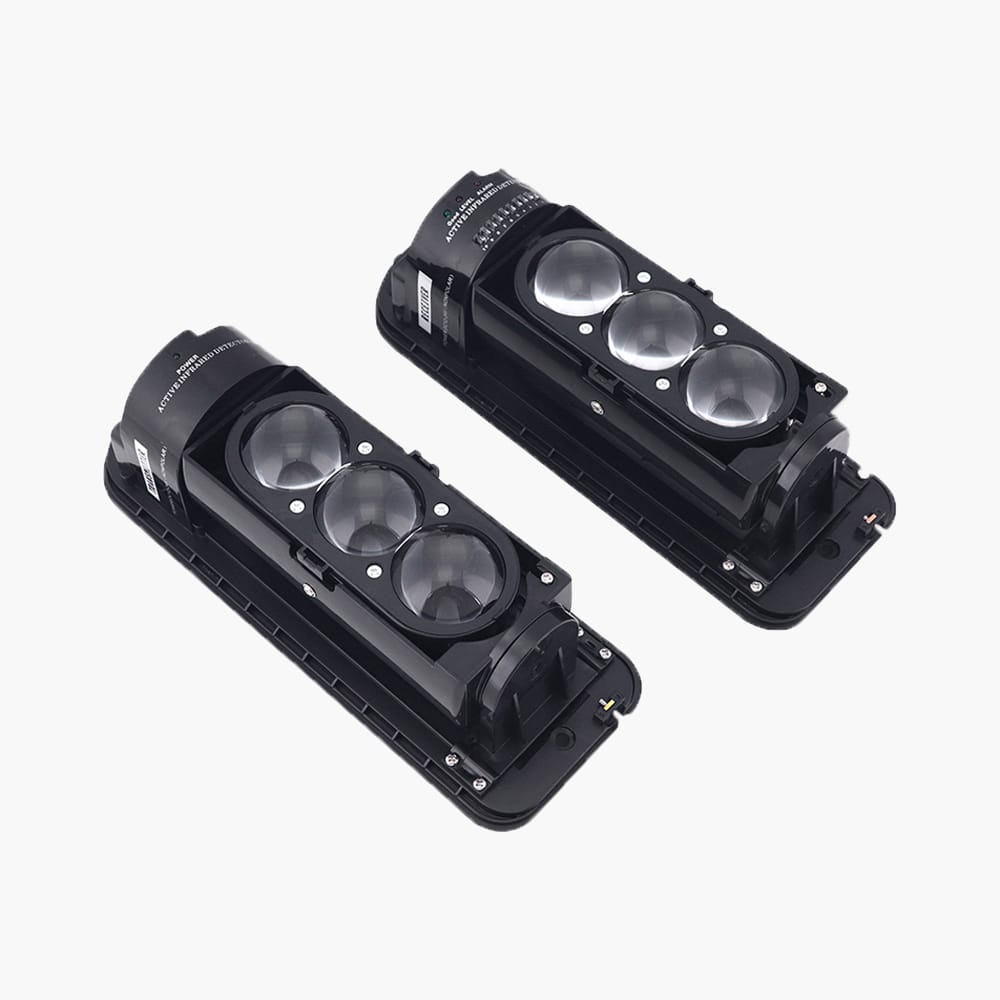

Triple Beam Active Infrared Sensor

Triple Beam Active Infrared Sensor offers enhanced perimeter security for residential and commercial use. With three photoelectric beams, it improves accuracy and reduces false alarms, responding quickly within 50–700 ms. Covering distances from 50 to 250 meters, it suits various layouts.

Brand: Avecone

Item No.: AHO-100

Description

Triple Beam Active Infrared Sensor is an advanced perimeter security solution built to enhance intrusion detection for both residential and commercial environments. Featuring a 3-beam photoelectric design, it ensures greater accuracy and minimizes false alarms, with a rapid response time of 50 to 700 milliseconds. Available in coverage ranges from 50 to 250 meters, it easily fits a variety of security applications—from gates and fences to building exteriors. Its wireless configuration allows for simple installation and relocation without the complexity of traditional wiring. This system delivers robust, high-performance protection with the flexibility and reliability modern security demands.

Additional information

Working Voltage

12-24V DC

Working Current

105mA max

Detecting Distance

50 ~ 250 Meter

Interruption Time

35-700ms

Alarm Output

NC/NO: AC/DC 30V 0.2A max

Installation

Outdoor/Indoor

Waterproof Grade

IP55

Usage

Perimeter Security / Sliding Gate / Automatic Doors / Garage Systems / Traffic Management

Working Temperature

-15℃ ~ +55℃
